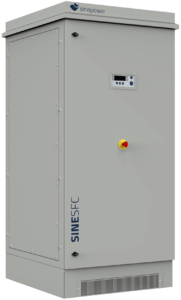

A marine static frequency converter that converts the power source with a specific input voltage and frequency into a different output voltage and frequency, depending on the customer’s requirements. These solid state frequency converters have no moving parts, apart from the fans to cool the system.
Technical specification
| Input | • Power Factor Correction (PF=1); • Low input harmonics (<1.5% THDi), to meet the strictest regulations at any load. |
| Technology | Our high-frequency IGBT technology (rectifier and inverter) guarantees a perfect sinewave input current with low THDi (THDi < 1.5%) and unitary power factor (PF=1), perfect for all types of extreme electrical conditions (compatible with Genset output). |
| Applications | Sinepower’s static frequency converters (SFC) for marine applications (shore power, shore-to-ship power) can also be used in other applications such as aerospace and manufacturing. |
| Output | • 400Hz SFC; • 4-quadrant operation (better system response and safer operation for NBPT); • Vector-controlled inverter for better response and higher efficiency. |
| Efficiency | Our 400Hz SFCs are up to 95%. efficient. |
Standards
| EMC | • EN 61000-6-4 EMC - Generic emission standard. • EN 61000-6-2 EMC - Generic immunity standard. |
| SAFETY | • IEC 62477-1 Safety requirements for power electronic converter systems and equipment. • IEC 60529 Degrees of protection provided by enclosures (IP). |
