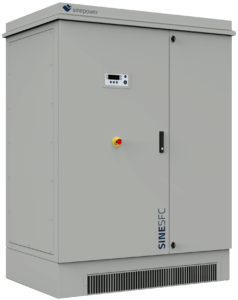

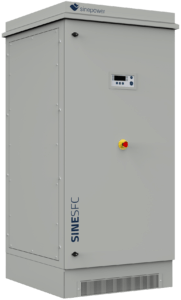

SINE SFC | 50Hz - 60Hz

A static frequency converter for marine applications converts the power source with a specific input voltage and frequency into a different output voltage and frequency, depending on the customer’s requirements.

Technical specification

Input	• 4-quadrant operation (better system response and safer operation for NBPT) • Low input harmonics (<1.5% THDi), to meet the strictest regulations at any load
Technology	Our high-frequency IGBT technology (rectifier and inverter) guarantees a perfect sinewave input current with low THDi (THDi < 1.5%) and unitary power factor (PF=1), perfect for all types of extreme electrical conditions (compatible with Genset output).
Applications	Sinepower’s 50-60Hz SFC static frequency converters for marine applications (shore power, shore-to-ship power) can also be used in other applications such as aerospace and manufacturing.
Output	• 50-60Hz SFC • Vector-controlled inverter for better response and higher efficiency
Efficiency	Our SFCs are up to 95% efficient.

Standards

EMC	• EN 61000-6-4 EMC - Generic emission standard. • EN 61000-6-2 EMC - Generic immunity standard.
SAFETY	• IEC 62477-1 Safety requirements for power electronic converter systems and equipment. • IEC 60529 Degrees of protection provided by enclosures (IP).
